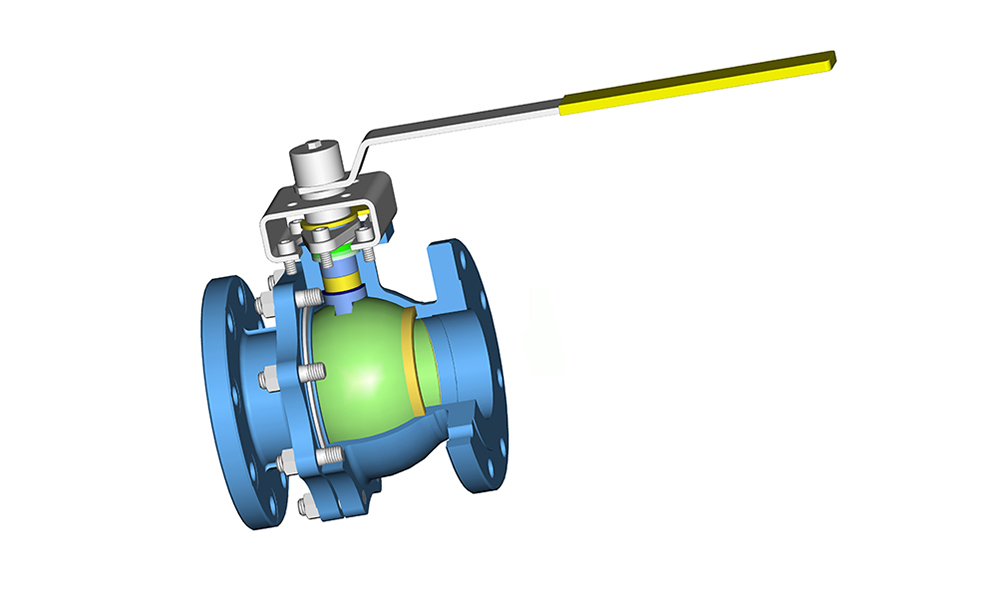

Two Pieces Floating Ball Valve

Design: API 6D; API 6FA ; API 607

Connection type:

1.END FLANGE(RF/RTJ):?ASME B16.5 (2” to 10”)

2.BUTT WELD(BW):?ASME B16.25

Face to Face: ASME B16.10

Insert Seal of Seat: RPTFE, PEEK etc.

Test: API 6D

Product range:

Size: NPS 2″~10″?(DN50~DN250)

Pressure Rating: ASME CLASS 150LB~300LB(PN16~PN50)

Next Product

Product Detail

Product Tags

Material of body

Casting	?
Carbon Steel	WCB,WCC
Low Temperature Steel	LCB,LCC
Stainless Steel	CF8, CF8M, CF3, CF3M, CF8C, CF10, CN7M, CG8M, CG3M
Duplex Steel	A890(995)/4A/5A/6A
Nickel-Based Alloy	Inconel 625/825, CK20

Features and Benefits

1.Two-Piece Construction: The valve body and bonnet are separate pieces that are bolted together, allowing for easy disassembly and maintenance.

2. Floating Ball Design: The ball is free to move within the valve body, allowing it to float and adjust its position to achieve a tight seal against the seat.

3. Full Port or Reduced Port: Two-piece floating ball valves are available in both full port and reduced port configurations, providing flexibility for different flow requirements.

4. Bi-Directional Flow: The floating ball design enables bidirectional flow capability, allowing the valve to operate effectively regardless of the flow direction.

5. Fire-Safe Design: Some two-piece floating ball valves are designed to be fire-safe, providing enhanced safety and protection in case of a fire.

6.Cost-Effective Solution: Two-piece floating ball valves offer a cost-effective option without compromising on quality and performance.

We understand that every application is unique. That's why we offer customizable options to meet your specific requirements. From materials and sizes to actuation and accessories, TH -Valve Nantong provide tailored solutions to fit your needs.Send us an email today, we are glad to show you more about our reference list and pictures of our product details.
