Pressure Seal Bonnet Wedge Gate Valve

Design: ASME B16.34?& MSS SP-144; BS EN 12516

Connection type:

1.END FLANGE(RF/RTJ):?ASME B16.5 (2” to 24”) & ASME B16.47?series A & B(≥ 26”);?BS EN 1092

2.BUTT WELD(BW):?ASME B16.25

Face to Face:?ASME B16.10; BS EN 558

Test: API 598; BS EN 12266

Product range:

Size: NPS 2″~40″(DN50~DN1000)

Pressure Rating: ASME CLASS 900LB~4500LB(PN150~PN760)

Next Product

Product Detail

Product Tags

Material of body

Casting	?
Carbon Steel	WCB,WCC
Low Temperature Steel	LCB,LCC
Stainless Steel	CF8, CF8M, CF3, CF3M, CF8C, CF10, CN7M, CG8M, CG3M etc.
Alloy Steel	WC6, WC9, C5, C12, C12A
Duplex Steel	A890(995)/4A/5A/6A
Nickel-Based Alloy	Monel, Inconel625/825, Hastelloy A/B/C etc.

Forging	?
Carbon Steel	A105
Low Temperature Steel	LF2
Stainless Steel	F304,F316,F321,F347
Alloy Steel	F11,F22,F5,F9,F91
Duplex Steel	F51,F53,F44
Nickel-Based Alloy	Monel, Inconel625/825, Hastelloy A/B/C

Operated type

Manual, Gear box, Actuator operated, Pneumatic operated

Features and Benefits

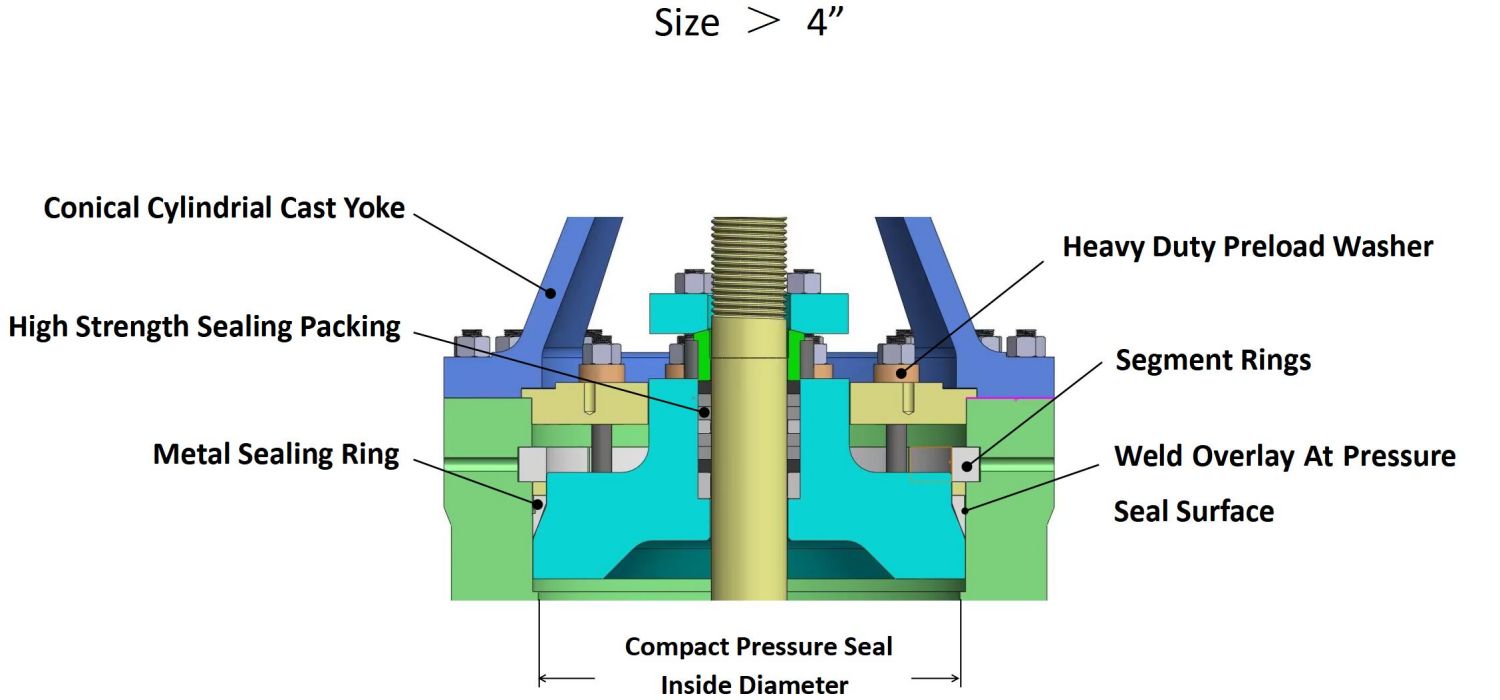

1. The design of Pressure Seal Gate Valve is specifically for high-pressure applications, therefore normally only available in pressure classes of 900# and above. These valves are unique because as their internal pressure increases, the body-bonnet joint seal improves.

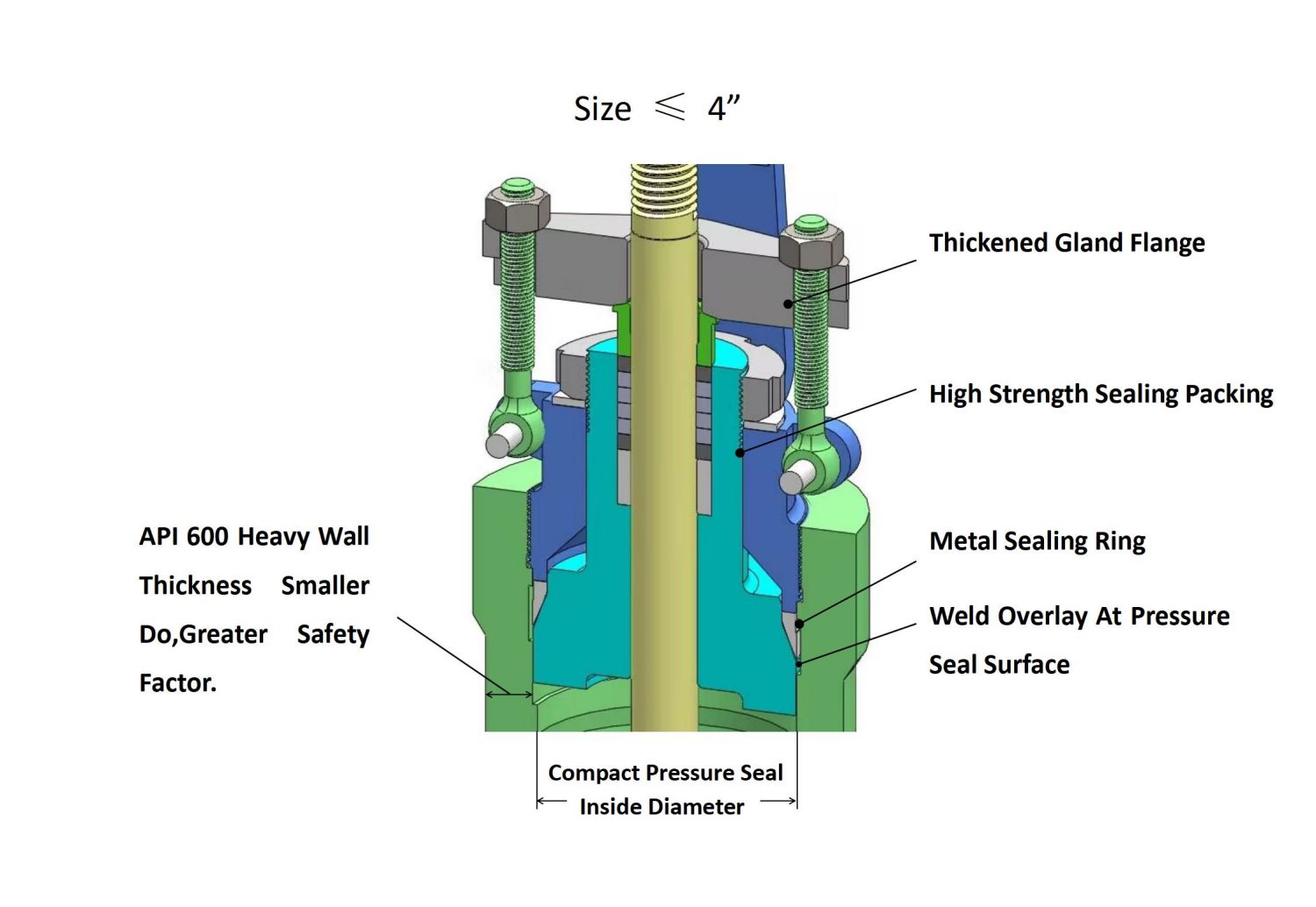

2. The highlights of Nantong TH-Valve’s design is to use a smaller pressure space,?which enables the greater pressure bearing and?higher safety factor?under the same wall thickness(API600 Heavy Duty).

3. Better seal capability with smaller angle of pressure seal and spring living load.

4. Comfortable operation experience?with smaller operation force.

5. The full bore design is more energy-efficient, and the reasonable compact structure is suitable for the the concept of green development.

Trust in TH-Valve Nantong’s proven experience and expertise in large size, high-pressure??Pressure Seal Gate Valve.

Contact us today to discuss your valve requirements and experience the greatness of working with a trusted valve factory.
